Description:

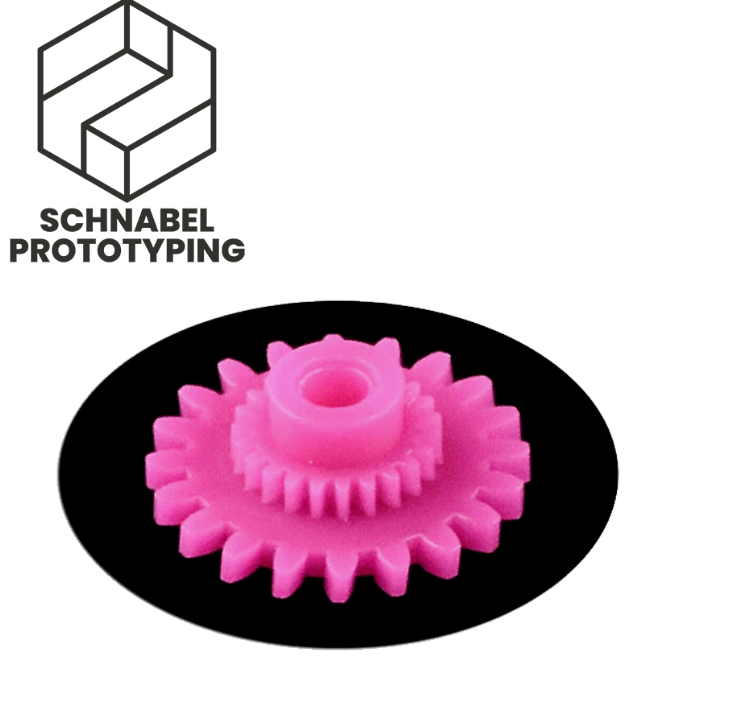

If your vehicle's odometer/trip meter has failed, this gear is almost always the cause. The original beige-brown gears crumble over time due to a material defect and must be replaced.

Mass:
Total diameter = 17.60mm (20 teeth)
Diameter of smaller gear = 9.65 mm (23 teeth)
Measured from tooth tip to tooth tip

Variants:
Most other 944-IIs have the 20x21 or 20x30 installed. You can find both in the shop.
While we can say with great certainty, we cannot say with 100% certainty which model uses which gear size. Too many factors come into play (engine type/transmission type/gear ratio/differential type/year of manufacture/model).
However, the following data will reliably help you determine the correct gear:
20x21 (17.60mm/9.00mm) Number of teeth opposite partner gear: 49 teeth 911/928 mph/944
20x22 (17.60mm/9.40mm) Number of teeth opposite partner gear: 48 teeth 911/944 mph
20x23 (17.60mm/9.65mm) Number of teeth opposite partner gear: 47 teeth 944(S2)/911(G)
20x29 (17.60mm/12.05mm) Number of teeth opposite partner gear: 41 teeth some 928 km/h
20x30 (17.60mm/12.55mm) Number of teeth opposite partner gear: 40 teeth 911/944
20x32 (17.60mm/13.40mm) Number of teeth opposite partner gear: 38 teeth 928 km/h

Simply count the teeth of the gear that this gear meshes with and/or use the measurements to help you.

Service:
We have over 100 gear wheel variants in our range and can supply the matching gear wheels if required!

+ all alternative sizes always in stock
+ fast exchange service in case of size discrepancy

We will send you illustrated repair instructions (German/English) via email. You can also find suitable repair videos on YouTube.

Reference numbers:
911641516FX, 911.641.516.FX, 911 641 516 FX
92864110331, 928.641.103.31, 928 641 103 31
94464131136, 944.641.311.36, 944 641 311 36
99664131136, 996.641.311.36, 996 641 311 36
110008229001
110008326064
91164151606, 911.641.516.06, 911 641 516 06
91164151603, 911.641.516.03, 911 641 516 03

Scope of delivery:
1 gear

Suitable for:
911G
Porsche 944 S2
Most other 944-IIs have the 20x21 or 20x30 lens installed. You can find both in the shop.
We can say with great certainty
but cannot say with 100% certainty
which model has which gear size. Too many factors come into play here (engine type/transmission type/gear ratio/differential type/year of manufacture/model). If, contrary to expectations, you need a different gear,
